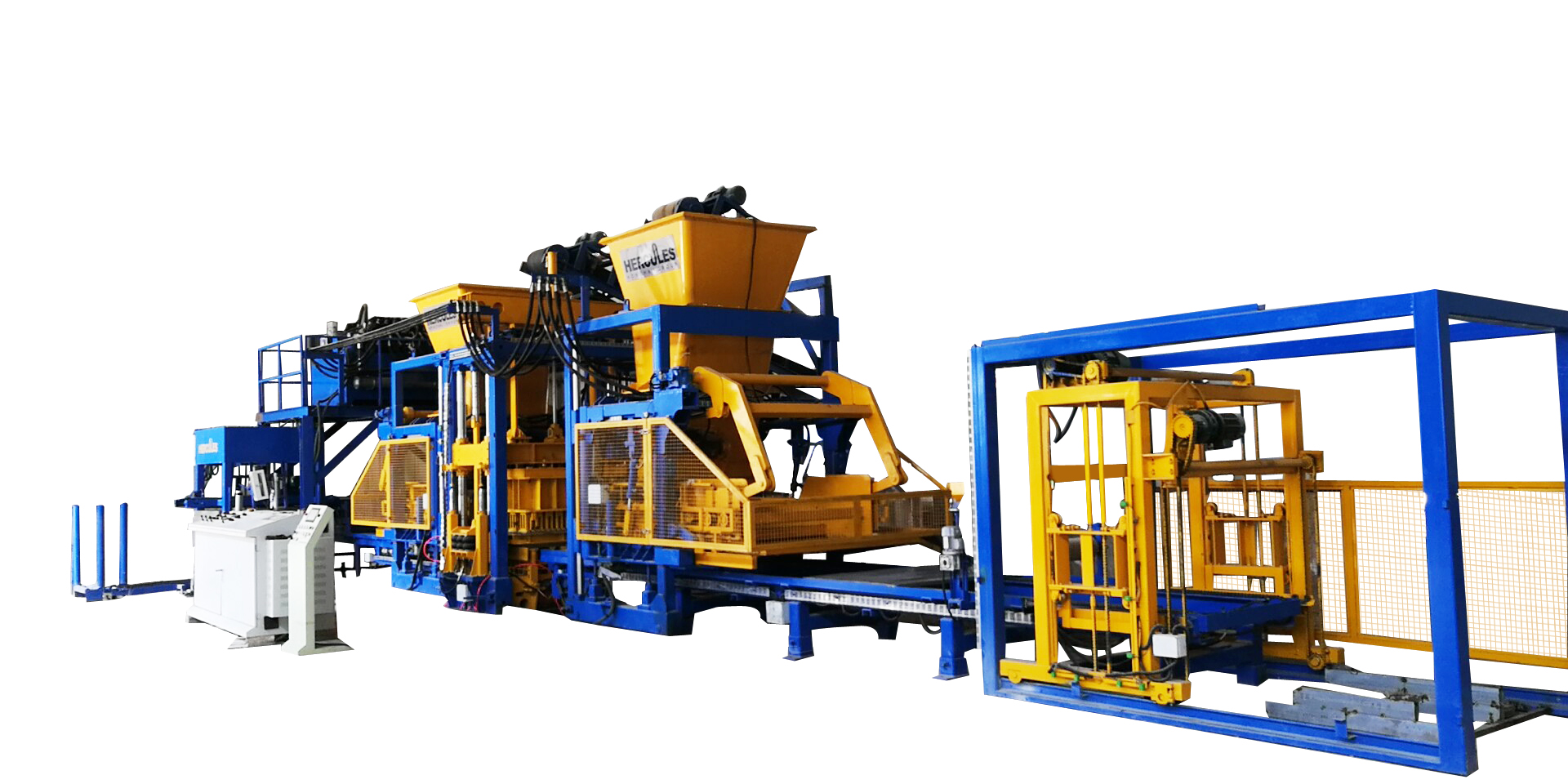

The automatic block molding machine is a construction machinery that integrates advanced technology and high – efficiency production.
Working Principle
It operates based on the principle of vibration and pressure application. Pre – treated raw materials such as sand, gravel, cement, and fly ash are conveyed to a mixer in proportion and stirred thoroughly. The uniformly mixed materials are then fed into a molding die. During the molding process, the machine uses high – frequency vibration to quickly compact the materials and fill the die, while applying pressure to make the blocks form rapidly.
Remarkable Advantages
1. High – efficiency Production
It has the ability to operate in a high – speed cycle, enabling continuous production, which greatly increases output and effectively meets the demands of large – scale construction projects.
2. Diverse Products
By changing different molds, it can produce blocks of various specifications and shapes, such as standard bricks, hollow bricks, paving bricks, etc., which are suitable for all kinds of construction projects.
3. Stable Quality
Precise control of vibration and pressure ensures that the density and strength of each block are uniform, improving the quality of the building structure.
4. High Degree of Automation
From raw material conveying, mixing, molding to stacking, the whole process is automated, reducing human intervention and lowering labor intensity and labor costs.
Application Fields
It is widely used in civil construction, municipal engineering, road construction and other fields. Whether it is for building residential houses, commercial buildings, or paving sidewalks and square floors, the automatic block molding machine can, with its stable and efficient performance, provide high – quality block products for construction projects.

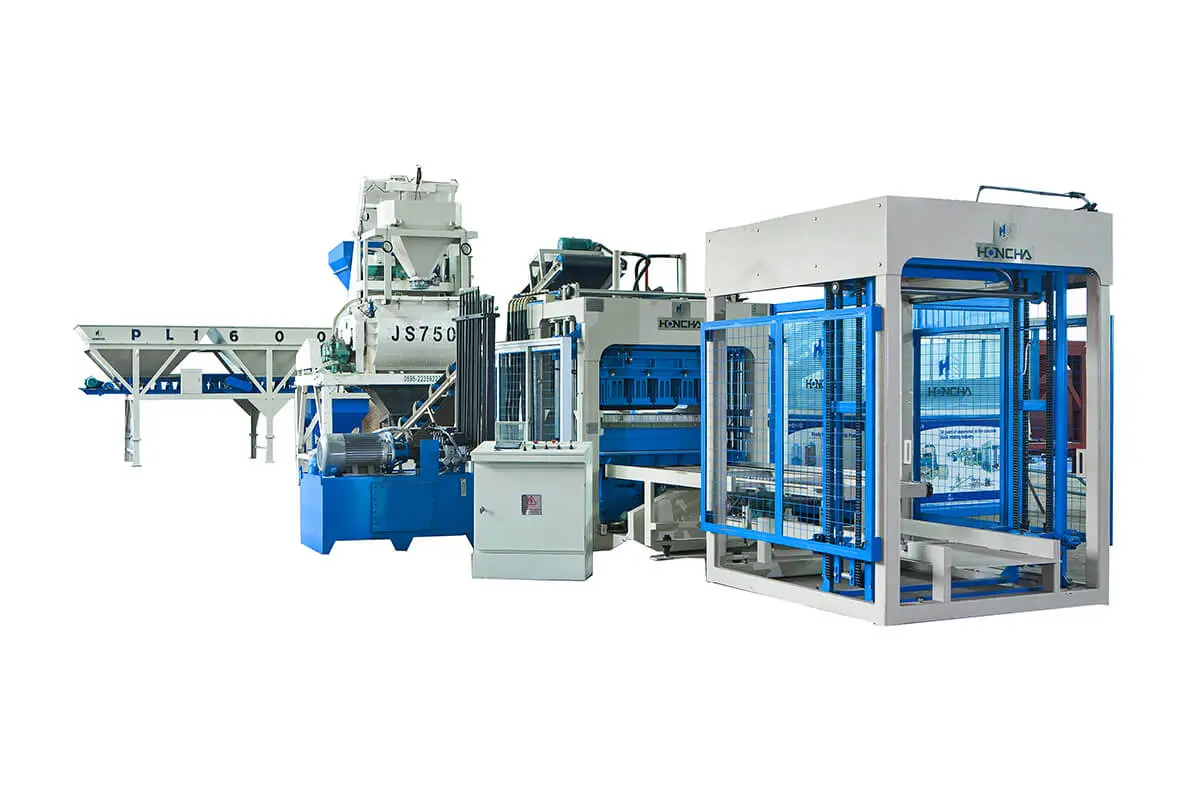

Concrete Block Molding Production Line: An Efficient Partner for Construction Industrialization
The concrete block molding production line is a highly integrated construction machinery and equipment, aiming to achieve the automated and large – scale production of concrete blocks.
Core Components and Operation Process
1. Batching System (PL1600)
It accurately measures various raw materials such as sand, gravel, and cement, and batches them according to the set proportion through an automated device to ensure the accuracy and consistency of raw material mixing.
2. Mixing System (JS750)
The batched raw materials are fed into the forced – action mixer JS750 for thorough mixing. The high – speed rotating mixing blades evenly blend the materials to form a concrete mixture that meets the molding requirements.
3. Molding System
The well – mixed materials are conveyed to the molding machine. The molding machine makes the concrete quickly form in the mold through actions such as mold opening and closing, vibration, and pressure application, producing blocks of various specifications.
4. Brick – Ejecting and Subsequent Treatment System
The formed blocks are ejected by the brick – ejecting mechanism and can be subjected to subsequent treatments such as stacking through supporting conveying equipment.
Prominent Advantages
1. High – efficiency Production
With a fully automated process, it has a short production cycle and can continuously and stably produce a large number of blocks, greatly improving production efficiency and shortening project duration.
2. Reliable Quality
Precise batching and mixing control, as well as a stable molding process, ensure that performance indicators such as the strength and density of the blocks meet high standards, with stable and uniform quality.
3. Strong Flexibility
By changing different molds, it can produce various types of blocks, including hollow bricks, solid bricks, slope – protection bricks, etc., to meet diverse construction needs.
4. Energy – Saving and Environment – Friendly
Advanced design concepts optimize energy utilization, reduce raw material waste and pollutant emissions, in line with the development trend of modern green buildings.
Application Scenarios
It is widely used in various construction projects, such as the wall masonry of residential houses, commercial buildings, industrial plants, etc., as well as the ground – paving projects of municipal roads, squares, parks, etc., providing a solid guarantee of basic materials for the construction industry.
